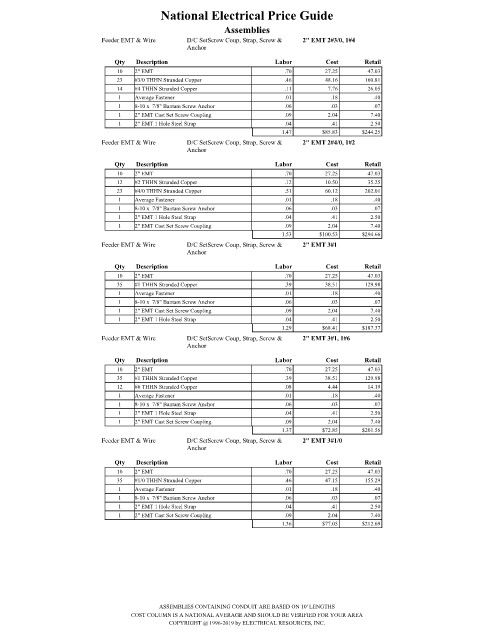

Page 1838 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 2#3/0, 1#4
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
23 #3/0 THHN Stranded Copper .46 48.16 160.81
14 #4 THHN Stranded Copper .11 7.76 26.05
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.47 $85.83 $244.25
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 2#4/0, 1#2
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #2 THHN Stranded Copper .12 10.50 35.25
23 #4/0 THHN Stranded Copper .51 60.12 202.01
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.53 $100.53 $294.66
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 3#1
Anchor

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #1 THHN Stranded Copper .39 38.51 129.98
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.29 $68.41 $187.37
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 3#1, 1#6
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #1 THHN Stranded Copper .39 38.51 129.98
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.37 $72.85 $201.56
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 3#1/0
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #1/0 THHN Stranded Copper .46 47.15 155.29
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.36 $77.05 $212.69

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
