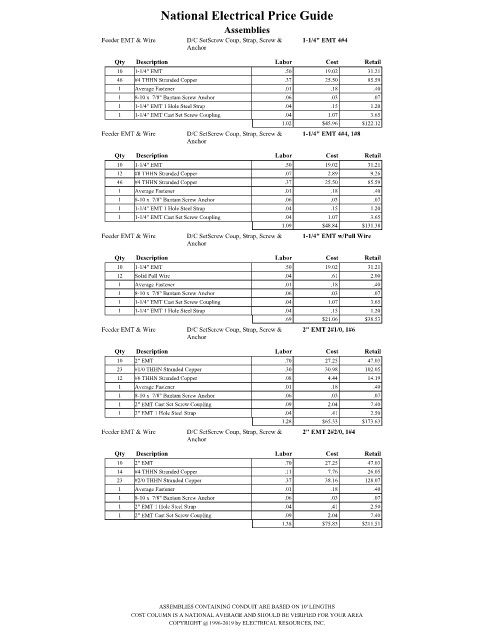

Page 1837 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/4" EMT 4#4
Anchor
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
46 #4 THHN Stranded Copper .37 25.50 85.59
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1.02 $45.96 $122.12
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/4" EMT 4#4, 1#8
Anchor

Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
46 #4 THHN Stranded Copper .37 25.50 85.59
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1.09 $48.84 $131.38
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/4" EMT w/Pull Wire
Anchor
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 Solid Pull Wire .04 .61 2.00
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
.69 $21.06 $38.53
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 2#1/0, 1#6
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
23 #1/0 THHN Stranded Copper .30 30.98 102.05
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.28 $65.33 $173.63
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 2#2/0, 1#4
Anchor

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
14 #4 THHN Stranded Copper .11 7.76 26.05
23 #2/0 THHN Stranded Copper .37 38.16 128.07
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.38 $75.83 $211.51

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
