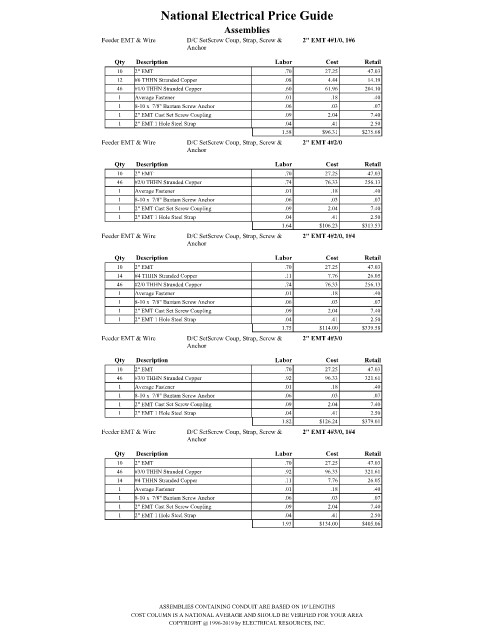

Page 1841 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 4#1/0, 1#6
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #1/0 THHN Stranded Copper .60 61.96 204.10
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.58 $96.31 $275.68
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 4#2/0
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.64 $106.23 $313.53
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 4#2/0, 1#4
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
14 #4 THHN Stranded Copper .11 7.76 26.05
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.75 $114.00 $339.58
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 4#3/0
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 96.33 321.61
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.82 $126.24 $379.01
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 4#3/0, 1#4
Anchor

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 96.33 321.61
14 #4 THHN Stranded Copper .11 7.76 26.05
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.93 $134.00 $405.06

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
