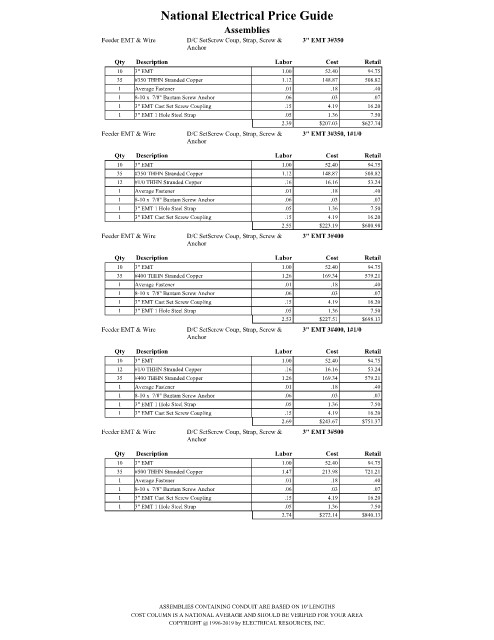

Page 1846 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 3#350
Anchor
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #350 THHN Stranded Copper 1.12 148.87 508.82
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
2.39 $207.03 $627.74
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 3#350, 1#1/0
Anchor

Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #350 THHN Stranded Copper 1.12 148.87 508.82
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.55 $223.19 $680.98
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 3#400
Anchor
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
2.53 $227.51 $698.13
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 3#400, 1#1/0
Anchor
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.69 $243.67 $751.37
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 3#500
Anchor

Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
2.74 $272.14 $840.13

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
