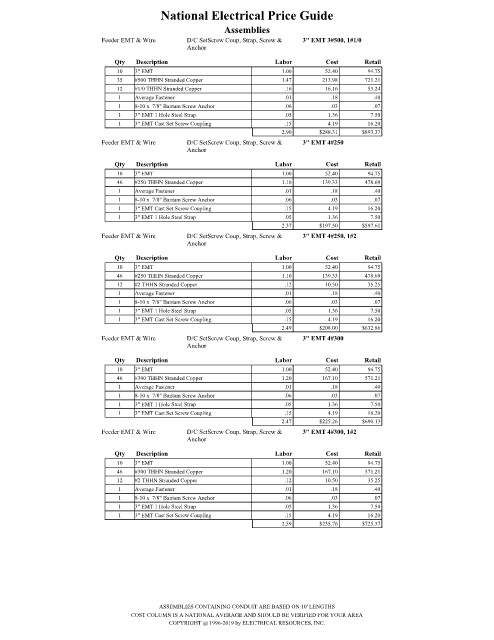

Page 1847 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 3#500, 1#1/0
Anchor
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.90 $288.31 $893.37
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 4#250
Anchor
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
2.37 $197.50 $597.61
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 4#250, 1#2
Anchor
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 139.33 478.69
12 #2 THHN Stranded Copper .12 10.50 35.25
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.49 $208.00 $632.86
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 4#300
Anchor
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.47 $225.26 $690.13
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 3" EMT 4#300, 1#2
Anchor

Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #300 THHN Stranded Copper 1.20 167.10 571.21
12 #2 THHN Stranded Copper .12 10.50 35.25
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.59 $235.76 $725.37

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
