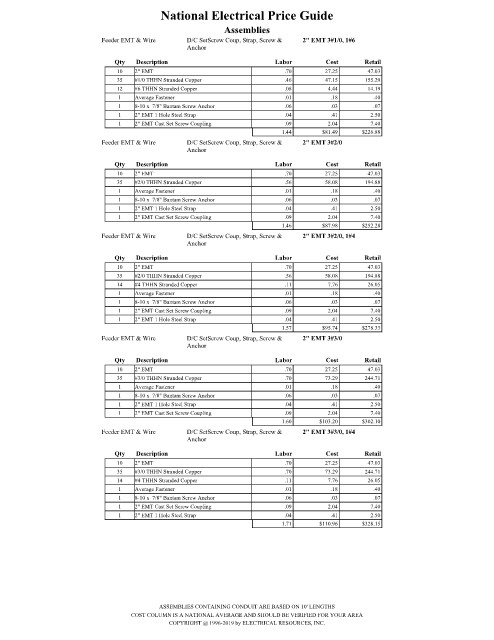

Page 1839 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 3#1/0, 1#6
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #1/0 THHN Stranded Copper .46 47.15 155.29
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.44 $81.49 $226.88
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 3#2/0
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #2/0 THHN Stranded Copper .56 58.08 194.88
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.46 $87.98 $252.28
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 3#2/0, 1#4
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #2/0 THHN Stranded Copper .56 58.08 194.88
14 #4 THHN Stranded Copper .11 7.76 26.05
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.57 $95.74 $278.33
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 3#3/0
Anchor
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #3/0 THHN Stranded Copper .70 73.29 244.71
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.60 $103.20 $302.10
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 2" EMT 3#3/0, 1#4
Anchor

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #3/0 THHN Stranded Copper .70 73.29 244.71
14 #4 THHN Stranded Copper .11 7.76 26.05
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.71 $110.96 $328.15

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
