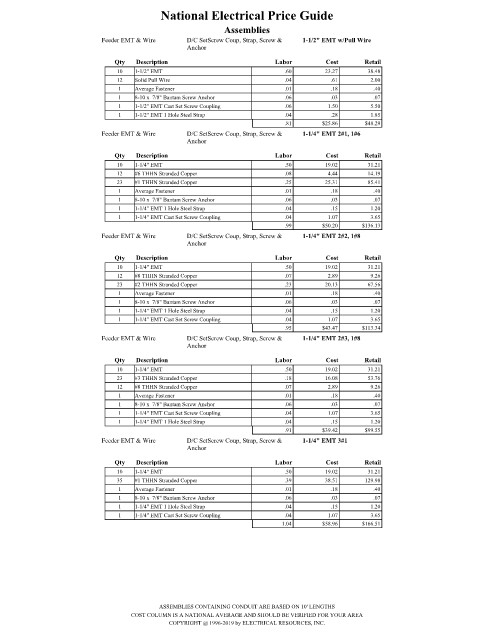

Page 1834 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/2" EMT w/Pull Wire
Anchor
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 Solid Pull Wire .04 .61 2.00
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
.81 $25.86 $48.29
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/4" EMT 2#1, 1#6
Anchor

Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #6 THHN Stranded Copper .08 4.44 14.19
23 #1 THHN Stranded Copper .25 25.31 85.41
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
.99 $50.20 $136.13
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/4" EMT 2#2, 1#8
Anchor
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #2 THHN Stranded Copper .23 20.13 67.56
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
.95 $43.47 $113.34
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/4" EMT 2#3, 1#8
Anchor
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
23 #3 THHN Stranded Copper .18 16.08 53.76
12 #8 THHN Stranded Copper .07 2.89 9.26
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
.91 $39.42 $99.55
Feeder EMT & Wire D/C SetScrew Coup, Strap, Screw & 1-1/4" EMT 3#1
Anchor
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #1 THHN Stranded Copper .39 38.51 129.98
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1.04 $58.96 $166.51

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
