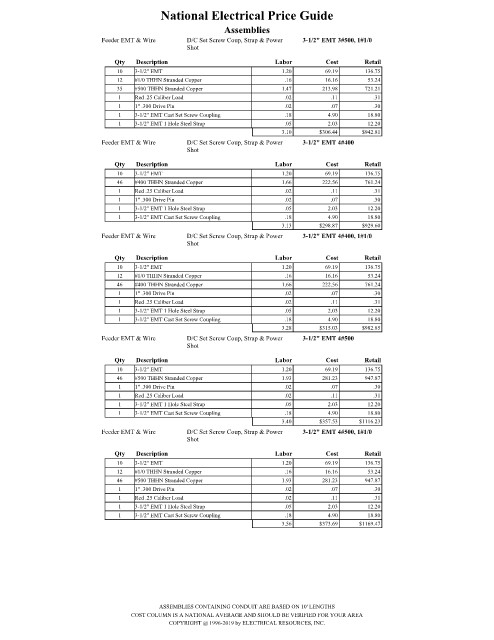

Page 1825 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT 3#500, 1#1/0
Shot
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
3.10 $306.44 $942.81
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT 4#400
Shot
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
3.13 $298.87 $929.60
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT 4#400, 1#1/0
Shot
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
3.28 $315.03 $982.85
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT 4#500
Shot
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
3.40 $357.53 $1116.23
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT 4#500, 1#1/0
Shot

Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
3.56 $373.69 $1169.47

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
