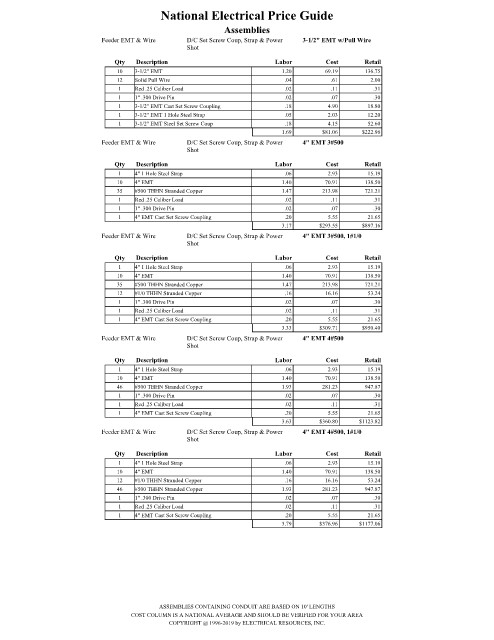

Page 1826 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 3-1/2" EMT w/Pull Wire
Shot
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
1.69 $81.06 $222.96
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 4" EMT 3#500
Shot
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
3.17 $293.55 $897.16
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 4" EMT 3#500, 1#1/0
Shot
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
3.33 $309.71 $950.40
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 4" EMT 4#500
Shot
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
3.63 $360.80 $1123.82
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 4" EMT 4#500, 1#1/0
Shot

Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
3.79 $376.96 $1177.06

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
