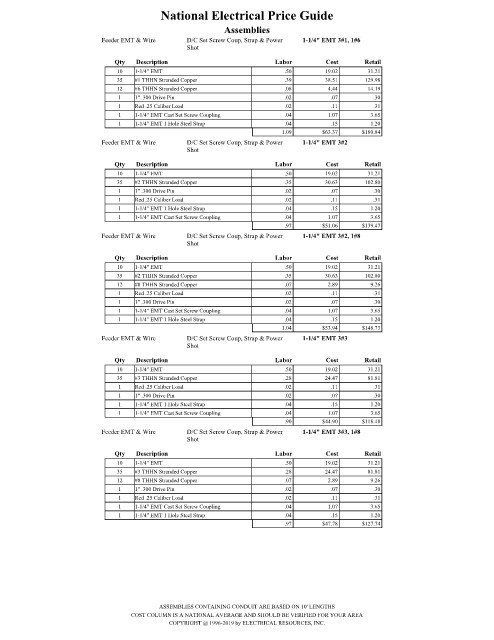

Page 1810 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 3#1, 1#6
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #1 THHN Stranded Copper .39 38.51 129.98
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1.09 $63.37 $180.84
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 3#2
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #2 THHN Stranded Copper .35 30.63 102.80
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
.97 $51.06 $139.47
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 3#2, 1#8
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #2 THHN Stranded Copper .35 30.63 102.80
12 #8 THHN Stranded Copper .07 2.89 9.26
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1.04 $53.94 $148.73
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 3#3
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #3 THHN Stranded Copper .28 24.47 81.81
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
.90 $44.90 $118.48
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 3#3, 1#8
Shot

Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #3 THHN Stranded Copper .28 24.47 81.81
12 #8 THHN Stranded Copper .07 2.89 9.26
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
.97 $47.78 $127.74

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
