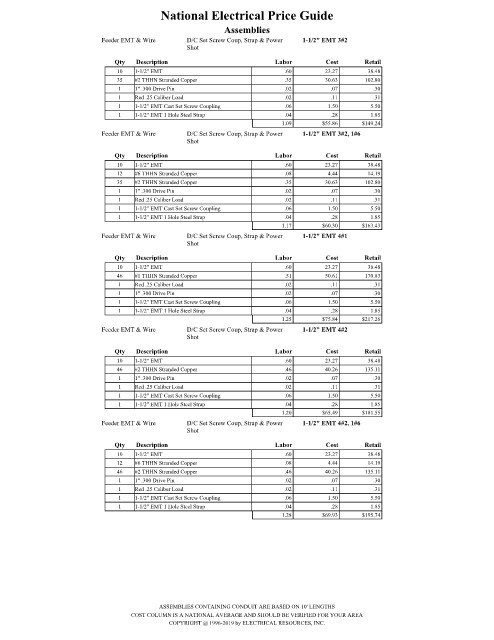

Page 1808 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 3#2
Shot
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #2 THHN Stranded Copper .35 30.63 102.80
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.09 $55.86 $149.24
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 3#2, 1#6
Shot

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
35 #2 THHN Stranded Copper .35 30.63 102.80
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.17 $60.30 $163.43
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 4#1
Shot
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #1 THHN Stranded Copper .51 50.61 170.83
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.25 $75.84 $217.26
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 4#2
Shot
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.20 $65.49 $181.55
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT 4#2, 1#6
Shot
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.28 $69.93 $195.74

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
