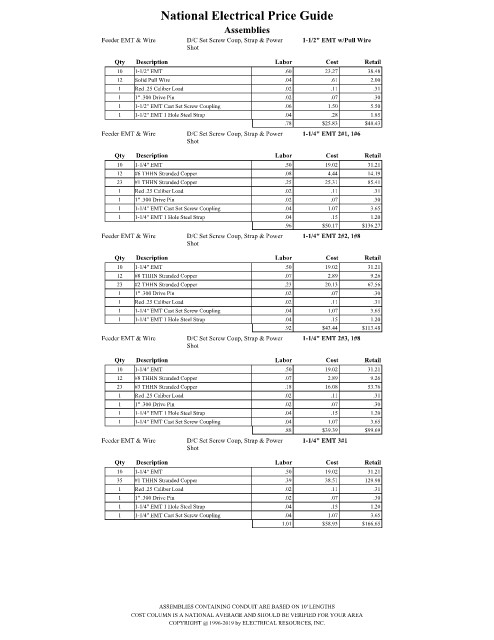

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/2" EMT w/Pull Wire
Shot
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Cast Set Screw Coupling .06 1.50 5.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
.78 $25.83 $48.43
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 2#1, 1#6
Shot

Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #6 THHN Stranded Copper .08 4.44 14.19
23 #1 THHN Stranded Copper .25 25.31 85.41
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
.96 $50.17 $136.27
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 2#2, 1#8
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #2 THHN Stranded Copper .23 20.13 67.56
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
.92 $43.44 $113.48
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 2#3, 1#8
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #3 THHN Stranded Copper .18 16.08 53.76
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
.88 $39.39 $99.69
Feeder EMT & Wire D/C Set Screw Coup, Strap & Power 1-1/4" EMT 3#1
Shot
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #1 THHN Stranded Copper .39 38.51 129.98
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Set Screw Coupling .04 1.07 3.65
1.01 $58.93 $166.65

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
