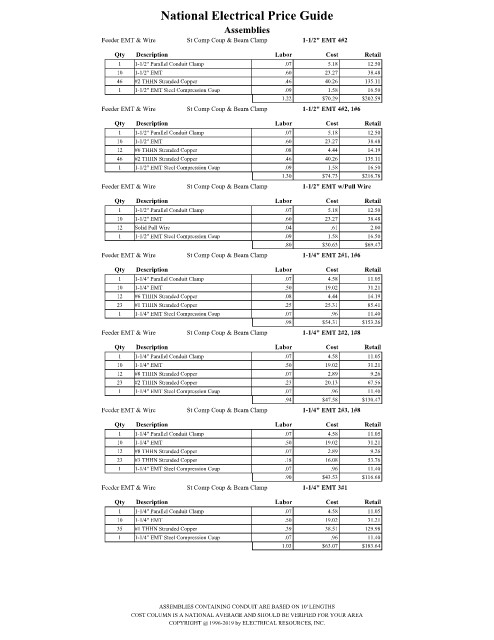

Page 1857 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup & Beam Clamp 1-1/2" EMT 4#2
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1.22 $70.29 $202.59
Feeder EMT & Wire St Comp Coup & Beam Clamp 1-1/2" EMT 4#2, 1#6
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1.30 $74.73 $216.78
Feeder EMT & Wire St Comp Coup & Beam Clamp 1-1/2" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
12 Solid Pull Wire .04 .61 2.00
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
.80 $30.63 $69.47
Feeder EMT & Wire St Comp Coup & Beam Clamp 1-1/4" EMT 2#1, 1#6
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
12 #6 THHN Stranded Copper .08 4.44 14.19
23 #1 THHN Stranded Copper .25 25.31 85.41
1 1-1/4" EMT Steel Compression Coup .07 .96 11.40
.98 $54.31 $153.26
Feeder EMT & Wire St Comp Coup & Beam Clamp 1-1/4" EMT 2#2, 1#8
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #2 THHN Stranded Copper .23 20.13 67.56
1 1-1/4" EMT Steel Compression Coup .07 .96 11.40
.94 $47.58 $130.47
Feeder EMT & Wire St Comp Coup & Beam Clamp 1-1/4" EMT 2#3, 1#8
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #3 THHN Stranded Copper .18 16.08 53.76
1 1-1/4" EMT Steel Compression Coup .07 .96 11.40
.90 $43.53 $116.68
Feeder EMT & Wire St Comp Coup & Beam Clamp 1-1/4" EMT 3#1
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
35 #1 THHN Stranded Copper .39 38.51 129.98
1 1-1/4" EMT Steel Compression Coup .07 .96 11.40
1.03 $63.07 $183.64

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
