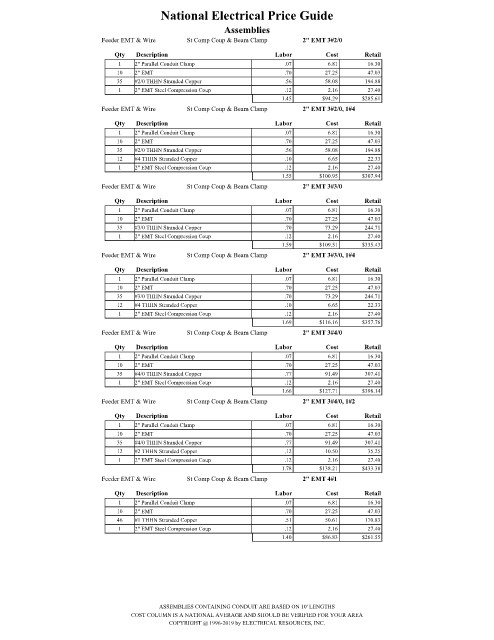

Page 1861 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT 3#2/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
35 #2/0 THHN Stranded Copper .56 58.08 194.88
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.45 $94.29 $285.61
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT 3#2/0, 1#4
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
35 #2/0 THHN Stranded Copper .56 58.08 194.88
12 #4 THHN Stranded Copper .10 6.65 22.33
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.55 $100.95 $307.94
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT 3#3/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
35 #3/0 THHN Stranded Copper .70 73.29 244.71
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.59 $109.51 $335.43
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT 3#3/0, 1#4
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
35 #3/0 THHN Stranded Copper .70 73.29 244.71
12 #4 THHN Stranded Copper .10 6.65 22.33
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.69 $116.16 $357.76
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT 3#4/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.66 $127.71 $398.14
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT 3#4/0, 1#2
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 91.49 307.41
12 #2 THHN Stranded Copper .12 10.50 35.25
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.78 $138.21 $433.38
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT 4#1
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #1 THHN Stranded Copper .51 50.61 170.83
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.40 $86.83 $261.55

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
