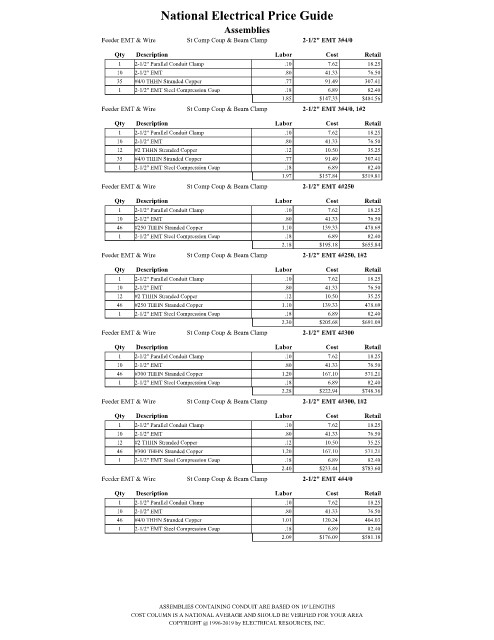

Page 1864 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 3#4/0
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
1.85 $147.33 $484.56
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 3#4/0, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
1.97 $157.84 $519.81
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 4#250
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.18 $195.18 $655.84
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 4#250, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.30 $205.68 $691.09
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 4#300
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.28 $222.94 $748.36
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 4#300, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.40 $233.44 $783.60
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 4#4/0
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
46 #4/0 THHN Stranded Copper 1.01 120.24 404.03
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.09 $176.09 $581.18

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
