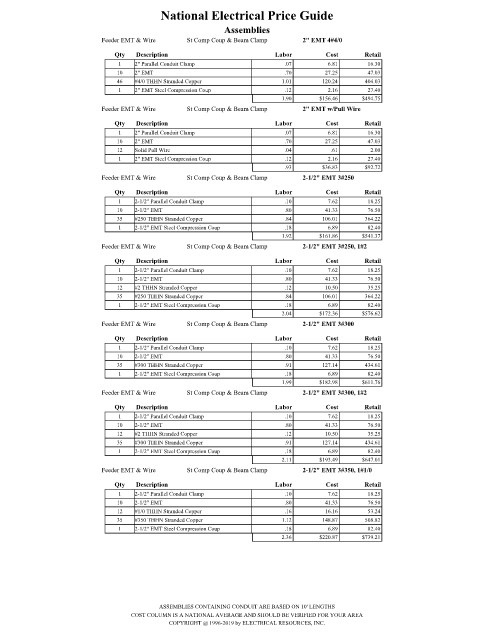

Page 1863 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT 4#4/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #4/0 THHN Stranded Copper 1.01 120.24 404.03
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.90 $156.46 $494.75
Feeder EMT & Wire St Comp Coup & Beam Clamp 2" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
12 Solid Pull Wire .04 .61 2.00
1 2" EMT Steel Compression Coup .12 2.16 27.40
.93 $36.83 $92.72
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 3#250
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #250 THHN Stranded Copper .84 106.01 364.22
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
1.92 $161.86 $541.37
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 3#250, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #250 THHN Stranded Copper .84 106.01 364.22
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.04 $172.36 $576.62
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 3#300
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #300 THHN Stranded Copper .91 127.14 434.61
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
1.99 $182.98 $611.76
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 3#300, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #300 THHN Stranded Copper .91 127.14 434.61
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.11 $193.49 $647.01
Feeder EMT & Wire St Comp Coup & Beam Clamp 2-1/2" EMT 3#350, 1#1/0
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #350 THHN Stranded Copper 1.12 148.87 508.82
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.36 $220.87 $739.21

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
