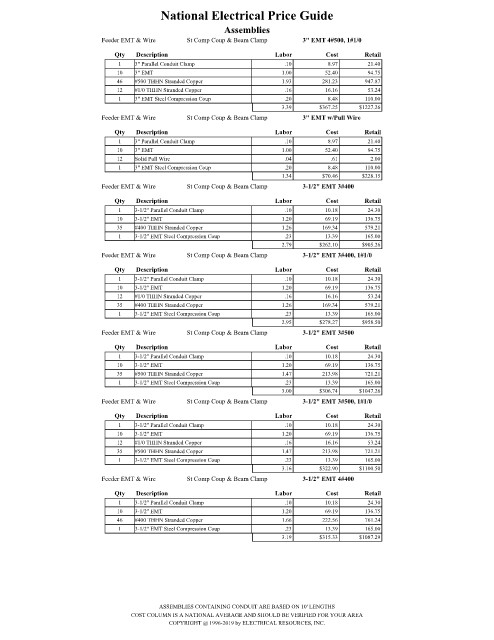

Page 1868 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup & Beam Clamp 3" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 3" EMT Steel Compression Coup .20 8.48 110.00
3.39 $367.25 $1227.26
Feeder EMT & Wire St Comp Coup & Beam Clamp 3" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 Solid Pull Wire .04 .61 2.00
1 3" EMT Steel Compression Coup .20 8.48 110.00
1.34 $70.46 $228.15
Feeder EMT & Wire St Comp Coup & Beam Clamp 3-1/2" EMT 3#400
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
2.79 $262.10 $905.26
Feeder EMT & Wire St Comp Coup & Beam Clamp 3-1/2" EMT 3#400, 1#1/0
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
2.95 $278.27 $958.50
Feeder EMT & Wire St Comp Coup & Beam Clamp 3-1/2" EMT 3#500
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
3.00 $306.74 $1047.26
Feeder EMT & Wire St Comp Coup & Beam Clamp 3-1/2" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
3.16 $322.90 $1100.50
Feeder EMT & Wire St Comp Coup & Beam Clamp 3-1/2" EMT 4#400
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
3.19 $315.33 $1087.29

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
