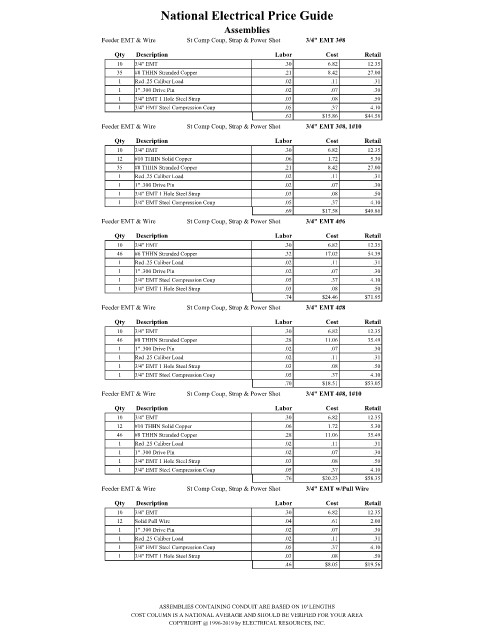

Page 1871 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 3#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #8 THHN Stranded Copper .21 8.42 27.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.63 $15.86 $44.56
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 3#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
35 #8 THHN Stranded Copper .21 8.42 27.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.69 $17.58 $49.86
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 4#6
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #6 THHN Stranded Copper .32 17.02 54.39
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.74 $24.46 $71.95
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 4#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.70 $18.51 $53.05
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 4#8, 1#10

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
46 #8 THHN Stranded Copper .28 11.06 35.49
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.76 $20.23 $58.35
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.46 $8.05 $19.56

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
