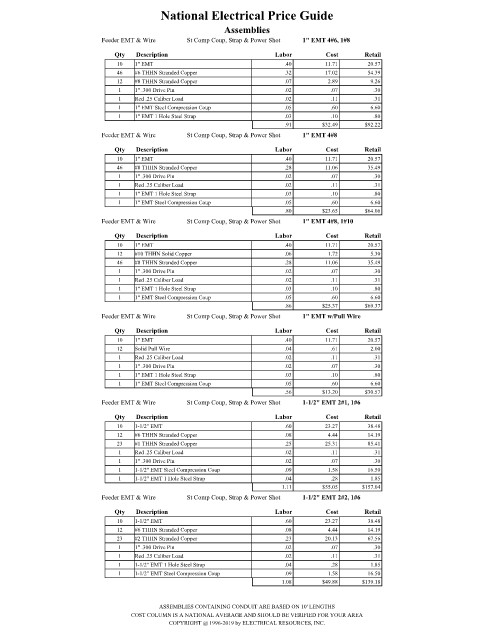

Page 1874 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 4#6, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
46 #6 THHN Stranded Copper .32 17.02 54.39
12 #8 THHN Stranded Copper .07 2.89 9.26
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT Steel Compression Coup .05 .60 6.60
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.91 $32.49 $92.22
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 4#8

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
46 #8 THHN Stranded Copper .28 11.06 35.49
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Steel Compression Coup .05 .60 6.60
.80 $23.65 $64.06
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 4#8, 1#10
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.72 5.30
46 #8 THHN Stranded Copper .28 11.06 35.49
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Steel Compression Coup .05 .60 6.60
.86 $25.37 $69.37
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT w/Pull Wire

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Steel Compression Coup .05 .60 6.60
.56 $13.20 $30.57
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 2#1, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
23 #1 THHN Stranded Copper .25 25.31 85.41
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.11 $55.05 $157.04
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 2#2, 1#6

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
23 #2 THHN Stranded Copper .23 20.13 67.56
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1.08 $49.88 $139.18

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
