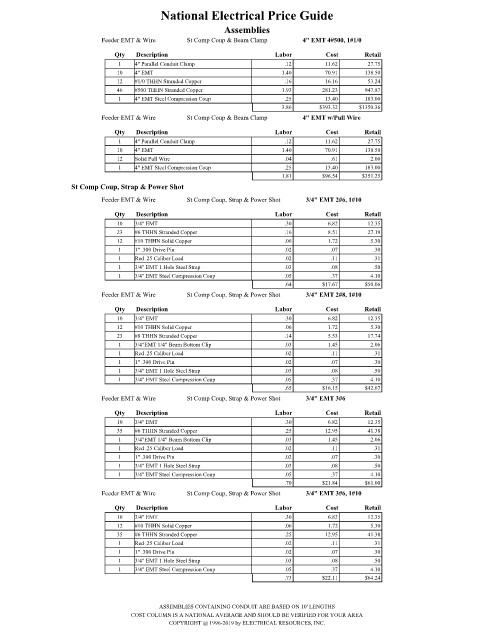

Page 1870 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup & Beam Clamp 4" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 4" Parallel Conduit Clamp .12 11.62 27.75
10 4" EMT 1.40 70.91 138.50
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 4" EMT Steel Compression Coup .25 13.40 183.00
3.86 $393.32 $1350.36
Feeder EMT & Wire St Comp Coup & Beam Clamp 4" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 4" Parallel Conduit Clamp .12 11.62 27.75
10 4" EMT 1.40 70.91 138.50
12 Solid Pull Wire .04 .61 2.00
1 4" EMT Steel Compression Coup .25 13.40 183.00
1.81 $96.54 $351.25
St Comp Coup, Strap & Power Shot
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 2#6, 1#10

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
23 #6 THHN Stranded Copper .16 8.51 27.19
12 #10 THHN Solid Copper .06 1.72 5.30
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.64 $17.67 $50.06
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 2#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
23 #8 THHN Stranded Copper .14 5.53 17.74
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.65 $16.15 $42.67
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 3#6
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #6 THHN Stranded Copper .25 12.95 41.38
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.70 $21.84 $61.00
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 3#6, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
35 #6 THHN Stranded Copper .25 12.95 41.38
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.73 $22.11 $64.24

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
