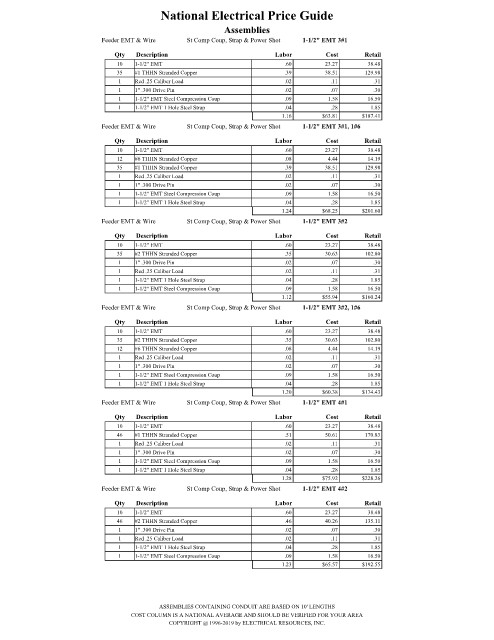

Page 1875 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 3#1
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #1 THHN Stranded Copper .39 38.51 129.98
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.16 $63.81 $187.41
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 3#1, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
35 #1 THHN Stranded Copper .39 38.51 129.98
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.24 $68.25 $201.60
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 3#2
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #2 THHN Stranded Copper .35 30.63 102.80
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1.12 $55.94 $160.24
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 3#2, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #2 THHN Stranded Copper .35 30.63 102.80
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.20 $60.38 $174.43
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 4#1
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #1 THHN Stranded Copper .51 50.61 170.83
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.28 $75.92 $228.26
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 4#2
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1.23 $65.57 $192.55

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
