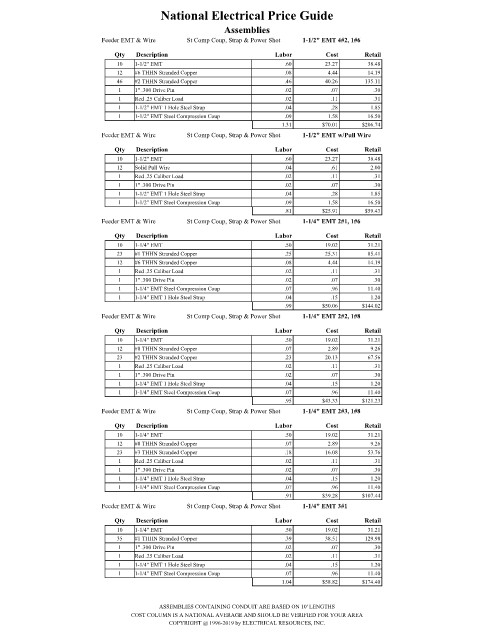

Page 1876 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT 4#2, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
1.31 $70.01 $206.74
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/2" EMT w/Pull Wire

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Compression Coup .09 1.58 16.50
.81 $25.91 $59.43
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/4" EMT 2#1, 1#6
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
23 #1 THHN Stranded Copper .25 25.31 85.41
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT Steel Compression Coup .07 .96 11.40
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
.99 $50.06 $144.02
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/4" EMT 2#2, 1#8

Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #2 THHN Stranded Copper .23 20.13 67.56
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Steel Compression Coup .07 .96 11.40
.95 $43.33 $121.23
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/4" EMT 2#3, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #3 THHN Stranded Copper .18 16.08 53.76
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Steel Compression Coup .07 .96 11.40
.91 $39.28 $107.44
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1-1/4" EMT 3#1
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #1 THHN Stranded Copper .39 38.51 129.98
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Steel Compression Coup .07 .96 11.40
1.04 $58.82 $174.40

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
