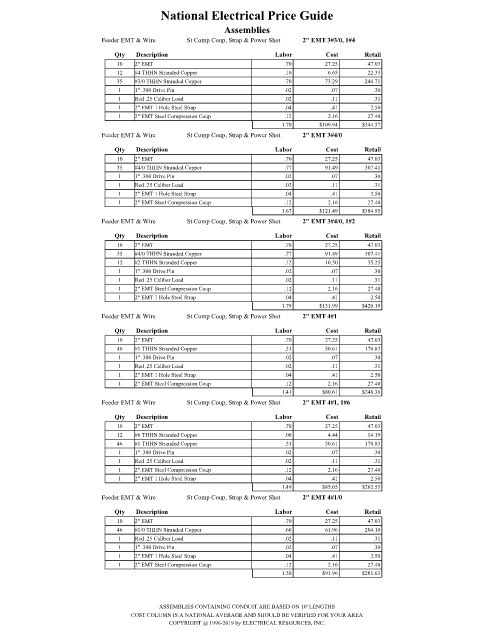

Page 1881 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2" EMT 3#3/0, 1#4
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
35 #3/0 THHN Stranded Copper .70 73.29 244.71
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.70 $109.94 $344.57
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2" EMT 3#4/0

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.67 $121.49 $384.95
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2" EMT 3#4/0, 1#2
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 91.49 307.41
12 #2 THHN Stranded Copper .12 10.50 35.25
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Steel Compression Coup .12 2.16 27.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.79 $131.99 $420.19
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2" EMT 4#1

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #1 THHN Stranded Copper .51 50.61 170.83
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.41 $80.61 $248.36
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2" EMT 4#1, 1#6
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #1 THHN Stranded Copper .51 50.61 170.83
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Steel Compression Coup .12 2.16 27.40
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.49 $85.05 $262.55
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2" EMT 4#1/0

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Steel Compression Coup .12 2.16 27.40
1.50 $91.96 $281.63

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
