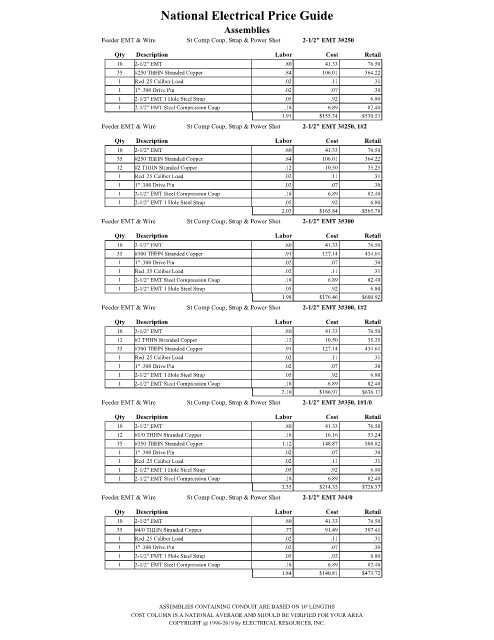

Page 1883 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2-1/2" EMT 3#250
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #250 THHN Stranded Copper .84 106.01 364.22
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
1.91 $155.34 $530.53
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2-1/2" EMT 3#250, 1#2
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #250 THHN Stranded Copper .84 106.01 364.22
12 #2 THHN Stranded Copper .12 10.50 35.25
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
2.03 $165.84 $565.78
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2-1/2" EMT 3#300
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #300 THHN Stranded Copper .91 127.14 434.61
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1.98 $176.46 $600.92
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2-1/2" EMT 3#300, 1#2
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #300 THHN Stranded Copper .91 127.14 434.61
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.10 $186.97 $636.17
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2-1/2" EMT 3#350, 1#1/0
Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #350 THHN Stranded Copper 1.12 148.87 508.82
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
2.35 $214.35 $728.37
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 2-1/2" EMT 3#4/0

Qty Description Labor Cost Retail
10 2-1/2" EMT .80 41.33 76.50
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2-1/2" EMT 1 Hole Steel Strap .05 .92 6.80
1 2-1/2" EMT Steel Compression Coup .18 6.89 82.40
1.84 $140.81 $473.72

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
