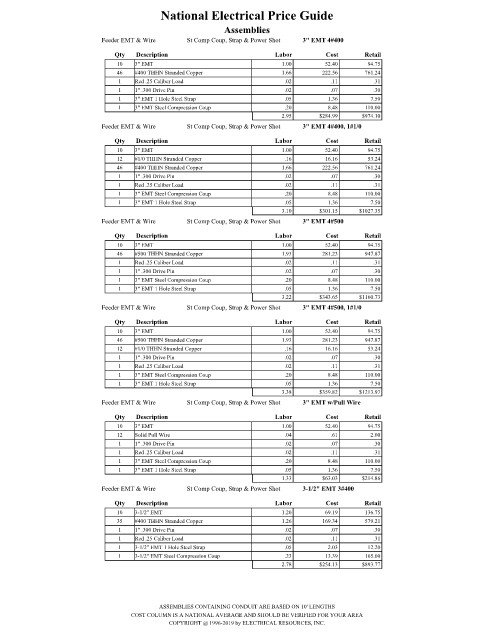

Page 1888 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#400
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Compression Coup .20 8.48 110.00
2.95 $284.99 $974.10
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#400, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT Steel Compression Coup .20 8.48 110.00
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
3.10 $301.15 $1027.35
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#500
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT Steel Compression Coup .20 8.48 110.00
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
3.22 $343.65 $1160.73
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT Steel Compression Coup .20 8.48 110.00
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
3.38 $359.82 $1213.97
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT Steel Compression Coup .20 8.48 110.00
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1.33 $63.03 $214.86
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT 3#400
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
2.78 $254.13 $893.77

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
