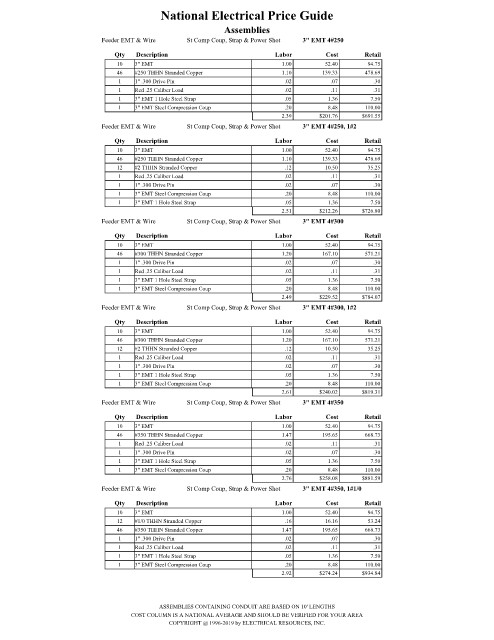

Page 1887 - National Electrical Price Guide
P. 1887
National Electrical Price Guide
Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#250
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Compression Coup .20 8.48 110.00
2.39 $201.76 $691.55
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#250, 1#2
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 139.33 478.69
12 #2 THHN Stranded Copper .12 10.50 35.25
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT Steel Compression Coup .20 8.48 110.00
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
2.51 $212.26 $726.80
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#300
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Compression Coup .20 8.48 110.00
2.49 $229.52 $784.07
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#300, 1#2
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #300 THHN Stranded Copper 1.20 167.10 571.21
12 #2 THHN Stranded Copper .12 10.50 35.25
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Compression Coup .20 8.48 110.00
2.61 $240.02 $819.31
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#350
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
46 #350 THHN Stranded Copper 1.47 195.65 668.73
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Compression Coup .20 8.48 110.00
2.76 $258.08 $881.59
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3" EMT 4#350, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #350 THHN Stranded Copper 1.47 195.65 668.73
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Compression Coup .20 8.48 110.00
2.92 $274.24 $934.84
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
