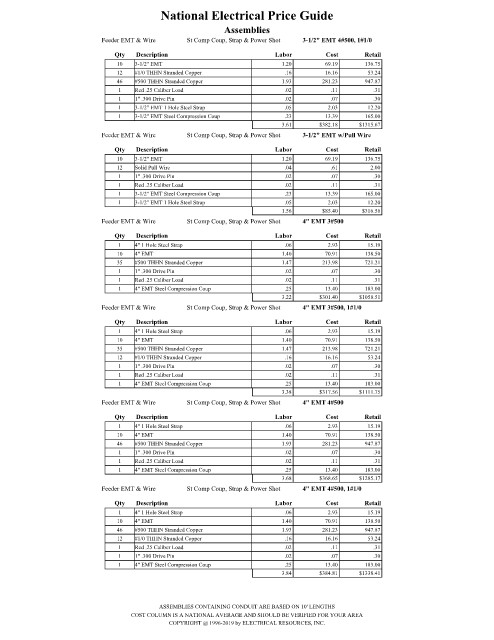

Page 1890 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
3.61 $382.18 $1315.67
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT w/Pull Wire

Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1.56 $85.40 $316.56
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 4" EMT 3#500
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Steel Compression Coup .25 13.40 183.00
3.22 $301.40 $1058.51
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 4" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Steel Compression Coup .25 13.40 183.00
3.38 $317.56 $1111.75
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 4" EMT 4#500
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Steel Compression Coup .25 13.40 183.00
3.68 $368.65 $1285.17
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 4" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
46 #500 THHN Stranded Copper 1.93 281.23 947.87
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 4" EMT Steel Compression Coup .25 13.40 183.00
3.84 $384.81 $1338.41

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
