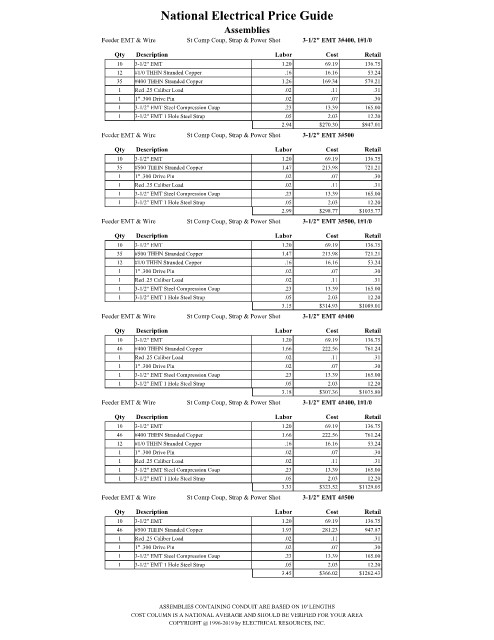

Page 1889 - National Electrical Price Guide
P. 1889
National Electrical Price Guide
Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT 3#400, 1#1/0
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
2.94 $270.30 $947.01
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT 3#500
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
2.99 $298.77 $1035.77
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
3.15 $314.93 $1089.01
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT 4#400
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
3.18 $307.36 $1075.80
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT 4#400, 1#1/0
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
3.33 $323.52 $1129.05
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 3-1/2" EMT 4#500
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Steel Compression Coup .23 13.39 165.00
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
3.45 $366.02 $1262.43
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
