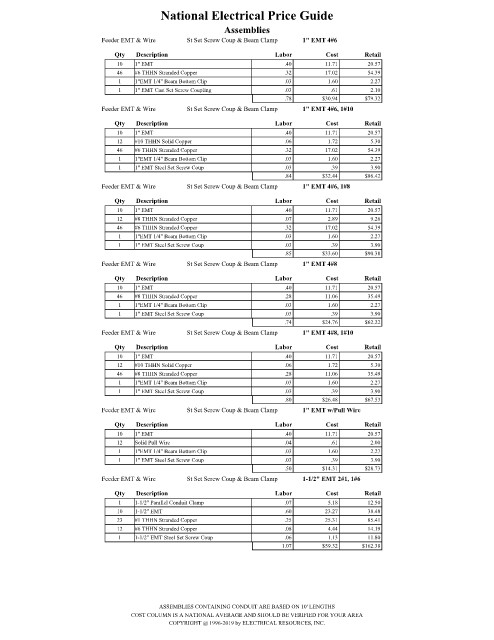

Page 1894 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1" EMT 4#6
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
46 #6 THHN Stranded Copper .32 17.02 54.39
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Cast Set Screw Coupling .03 .61 2.10
.78 $30.94 $79.32
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1" EMT 4#6, 1#10
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.72 5.30
46 #6 THHN Stranded Copper .32 17.02 54.39
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Steel Set Screw Coup .03 .39 3.90
.84 $32.44 $86.42
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1" EMT 4#6, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #8 THHN Stranded Copper .07 2.89 9.26
46 #6 THHN Stranded Copper .32 17.02 54.39
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Steel Set Screw Coup .03 .39 3.90
.85 $33.60 $90.38
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1" EMT 4#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
46 #8 THHN Stranded Copper .28 11.06 35.49
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Steel Set Screw Coup .03 .39 3.90
.74 $24.76 $62.22
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1" EMT 4#8, 1#10
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #10 THHN Solid Copper .06 1.72 5.30
46 #8 THHN Stranded Copper .28 11.06 35.49
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Steel Set Screw Coup .03 .39 3.90
.80 $26.48 $67.53
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 Solid Pull Wire .04 .61 2.00
1 1"EMT 1/4" Beam Bottom Clip .03 1.60 2.27
1 1" EMT Steel Set Screw Coup .03 .39 3.90
.50 $14.31 $28.73
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1-1/2" EMT 2#1, 1#6
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
23 #1 THHN Stranded Copper .25 25.31 85.41
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1.07 $59.32 $162.38

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
