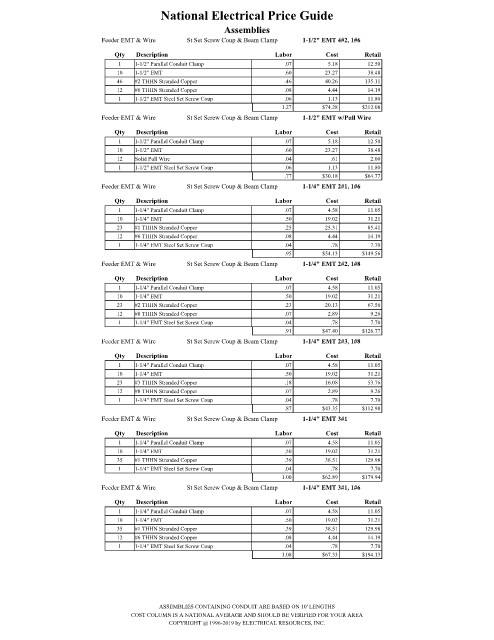

Page 1896 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1-1/2" EMT 4#2, 1#6
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
46 #2 THHN Stranded Copper .46 40.26 135.11
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1.27 $74.28 $212.08
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1-1/2" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
12 Solid Pull Wire .04 .61 2.00
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
.77 $30.18 $64.77
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1-1/4" EMT 2#1, 1#6
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
23 #1 THHN Stranded Copper .25 25.31 85.41
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1-1/4" EMT Steel Set Screw Coup .04 .78 7.70
.95 $54.13 $149.56
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1-1/4" EMT 2#2, 1#8
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
23 #2 THHN Stranded Copper .23 20.13 67.56
12 #8 THHN Stranded Copper .07 2.89 9.26
1 1-1/4" EMT Steel Set Screw Coup .04 .78 7.70
.91 $47.40 $126.77
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1-1/4" EMT 2#3, 1#8
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
23 #3 THHN Stranded Copper .18 16.08 53.76
12 #8 THHN Stranded Copper .07 2.89 9.26
1 1-1/4" EMT Steel Set Screw Coup .04 .78 7.70
.87 $43.35 $112.98
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1-1/4" EMT 3#1
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
35 #1 THHN Stranded Copper .39 38.51 129.98
1 1-1/4" EMT Steel Set Screw Coup .04 .78 7.70
1.00 $62.89 $179.94
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 1-1/4" EMT 3#1, 1#6
Qty Description Labor Cost Retail
1 1-1/4" Parallel Conduit Clamp .07 4.58 11.05
10 1-1/4" EMT .50 19.02 31.21
35 #1 THHN Stranded Copper .39 38.51 129.98
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1-1/4" EMT Steel Set Screw Coup .04 .78 7.70
1.08 $67.33 $194.13

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
