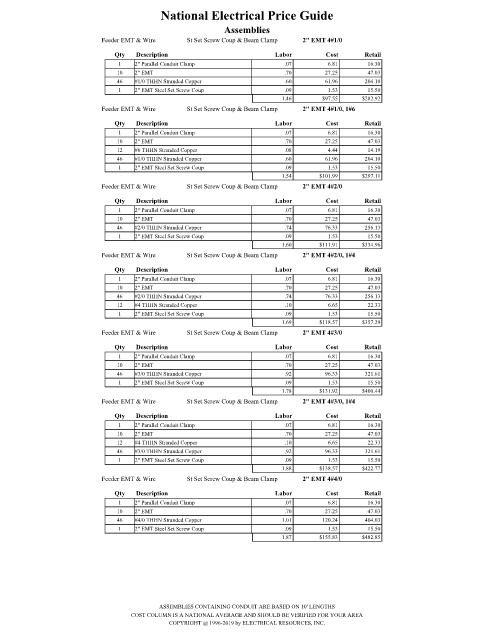

Page 1901 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2" EMT 4#1/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1.46 $97.55 $282.92
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2" EMT 4#1/0, 1#6
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #1/0 THHN Stranded Copper .60 61.96 204.10
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1.54 $101.99 $297.11
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2" EMT 4#2/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1.60 $111.91 $334.96
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2" EMT 4#2/0, 1#4
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #2/0 THHN Stranded Copper .74 76.33 256.13
12 #4 THHN Stranded Copper .10 6.65 22.33
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1.69 $118.57 $357.29
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2" EMT 4#3/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 96.33 321.61
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1.78 $131.92 $400.44
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2" EMT 4#3/0, 1#4
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
46 #3/0 THHN Stranded Copper .92 96.33 321.61
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1.88 $138.57 $422.77
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2" EMT 4#4/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #4/0 THHN Stranded Copper 1.01 120.24 404.03
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1.87 $155.83 $482.85

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
