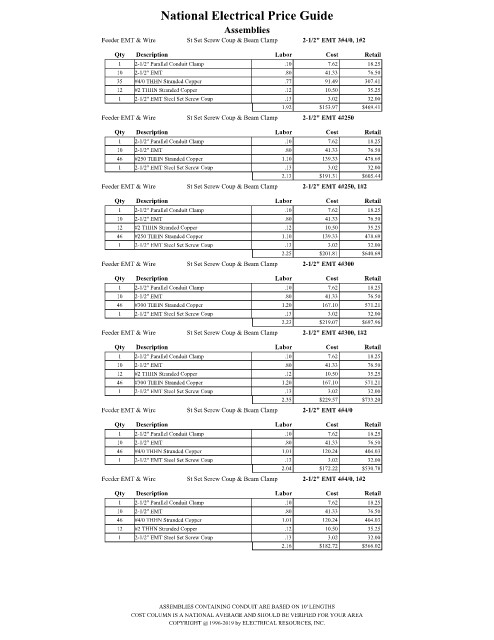

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2-1/2" EMT 3#4/0, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #4/0 THHN Stranded Copper .77 91.49 307.41
12 #2 THHN Stranded Copper .12 10.50 35.25
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
1.92 $153.97 $469.41
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2-1/2" EMT 4#250
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
2.13 $191.31 $605.44
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2-1/2" EMT 4#250, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
2.25 $201.81 $640.69
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2-1/2" EMT 4#300
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
2.23 $219.07 $697.96
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2-1/2" EMT 4#300, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
2.35 $229.57 $733.20
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2-1/2" EMT 4#4/0
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
46 #4/0 THHN Stranded Copper 1.01 120.24 404.03
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
2.04 $172.22 $530.78
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 2-1/2" EMT 4#4/0, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
46 #4/0 THHN Stranded Copper 1.01 120.24 404.03
12 #2 THHN Stranded Copper .12 10.50 35.25
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
2.16 $182.72 $566.02

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
