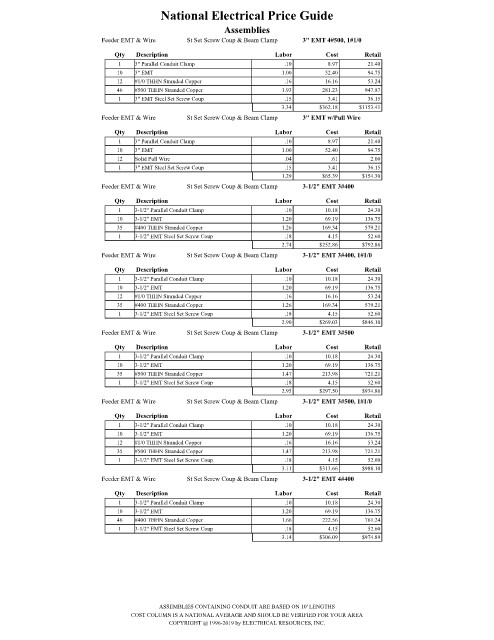

Page 1907 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
3.34 $362.18 $1153.41
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 Solid Pull Wire .04 .61 2.00
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1.29 $65.39 $154.30
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3-1/2" EMT 3#400
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
2.74 $252.86 $792.86
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3-1/2" EMT 3#400, 1#1/0
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
2.90 $269.03 $846.10
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3-1/2" EMT 3#500
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
2.95 $297.50 $934.86
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3-1/2" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
3.11 $313.66 $988.10
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3-1/2" EMT 4#400
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
3.14 $306.09 $974.89

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
