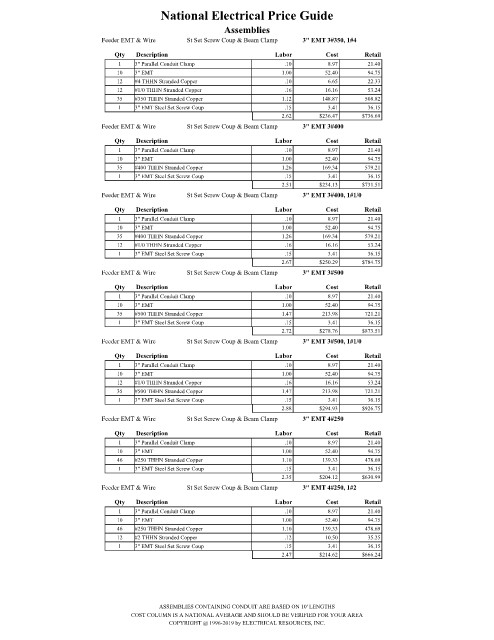

Page 1905 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT 3#350, 1#4
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 #4 THHN Stranded Copper .10 6.65 22.33
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #350 THHN Stranded Copper 1.12 148.87 508.82
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.62 $236.47 $736.69
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT 3#400
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.51 $234.13 $731.51
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT 3#400, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.67 $250.29 $784.75
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT 3#500
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.72 $278.76 $873.51
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.88 $294.93 $926.75
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT 4#250
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.35 $204.12 $630.99
Feeder EMT & Wire St Set Screw Coup & Beam Clamp 3" EMT 4#250, 1#2
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 139.33 478.69
12 #2 THHN Stranded Copper .12 10.50 35.25
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.47 $214.62 $666.24

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
