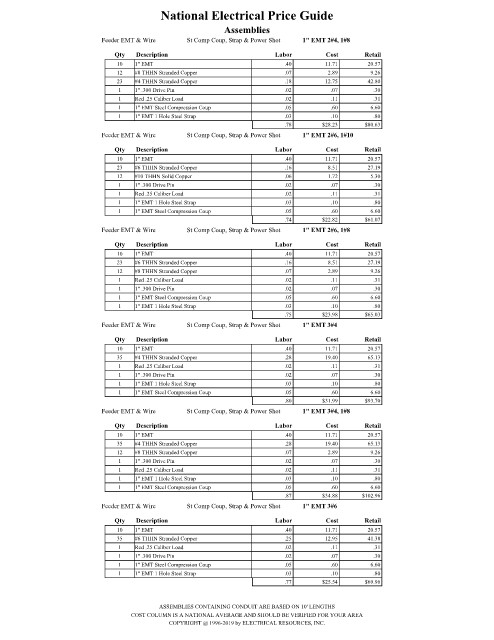

Page 1872 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 2#4, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #4 THHN Stranded Copper .18 12.75 42.80
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT Steel Compression Coup .05 .60 6.60
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.78 $28.23 $80.63
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 2#6, 1#10

Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
23 #6 THHN Stranded Copper .16 8.51 27.19
12 #10 THHN Solid Copper .06 1.72 5.30
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Steel Compression Coup .05 .60 6.60
.74 $22.82 $61.07
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 2#6, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
23 #6 THHN Stranded Copper .16 8.51 27.19
12 #8 THHN Stranded Copper .07 2.89 9.26
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT Steel Compression Coup .05 .60 6.60
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.75 $23.98 $65.03
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 3#4
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #4 THHN Stranded Copper .28 19.40 65.13
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Steel Compression Coup .05 .60 6.60
.80 $31.99 $93.70
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 3#4, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #4 THHN Stranded Copper .28 19.40 65.13
12 #8 THHN Stranded Copper .07 2.89 9.26
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Steel Compression Coup .05 .60 6.60
.87 $34.88 $102.96
Feeder EMT & Wire St Comp Coup, Strap & Power Shot 1" EMT 3#6
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
35 #6 THHN Stranded Copper .25 12.95 41.38
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT Steel Compression Coup .05 .60 6.60
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.77 $25.54 $69.96

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
