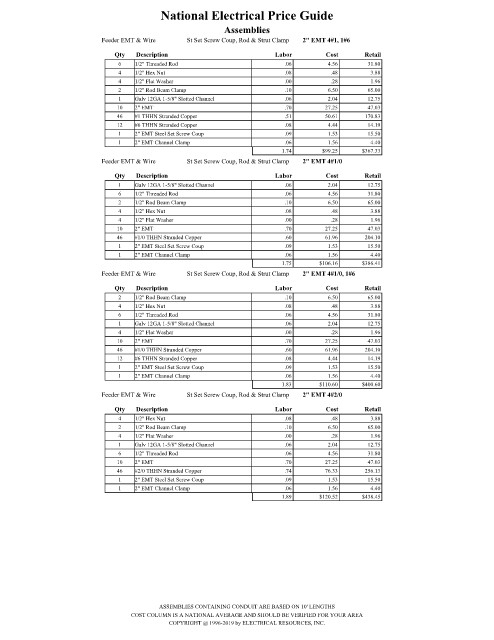

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#1, 1#6
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2" EMT .70 27.25 47.03
46 #1 THHN Stranded Copper .51 50.61 170.83
12 #6 THHN Stranded Copper .08 4.44 14.19
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.74 $99.25 $367.33
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#1/0

Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.75 $106.16 $386.41
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#1/0, 1#6
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
12 #6 THHN Stranded Copper .08 4.44 14.19
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.83 $110.60 $400.60
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2" EMT 4#2/0

Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
10 2" EMT .70 27.25 47.03
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT Channel Clamp .06 1.56 4.40
1.89 $120.52 $438.45

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
