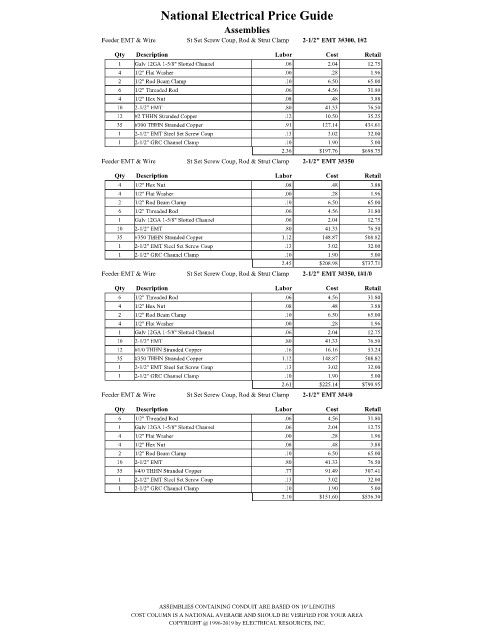

Page 1930 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2-1/2" EMT 3#300, 1#2
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #300 THHN Stranded Copper .91 127.14 434.61
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
1 2-1/2" GRC Channel Clamp .10 1.90 5.00
2.36 $197.76 $698.75
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2-1/2" EMT 3#350

Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2-1/2" EMT .80 41.33 76.50
35 #350 THHN Stranded Copper 1.12 148.87 508.82
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
1 2-1/2" GRC Channel Clamp .10 1.90 5.00
2.45 $208.98 $737.71
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2-1/2" EMT 3#350, 1#1/0
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2-1/2" EMT .80 41.33 76.50
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #350 THHN Stranded Copper 1.12 148.87 508.82
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
1 2-1/2" GRC Channel Clamp .10 1.90 5.00
2.61 $225.14 $790.95
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 2-1/2" EMT 3#4/0

Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 2-1/2" EMT .80 41.33 76.50
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 2-1/2" EMT Steel Set Screw Coup .13 3.02 32.00
1 2-1/2" GRC Channel Clamp .10 1.90 5.00
2.10 $151.60 $536.30

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
