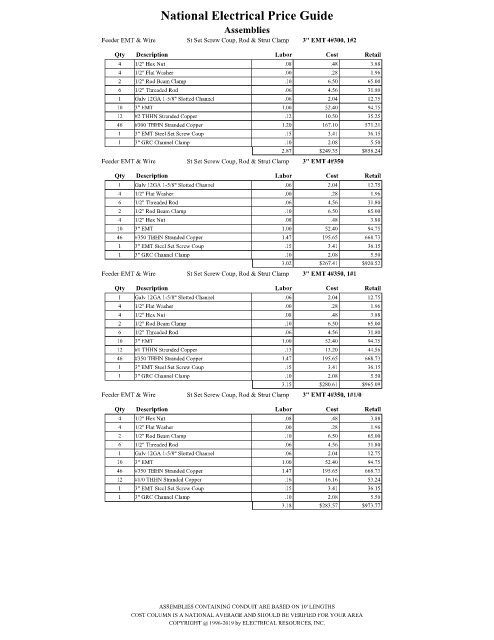

Page 1937 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 4#300, 1#2
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3" EMT 1.00 52.40 94.75
12 #2 THHN Stranded Copper .12 10.50 35.25
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
2.87 $249.35 $858.24
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 4#350

Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
10 3" EMT 1.00 52.40 94.75
46 #350 THHN Stranded Copper 1.47 195.65 668.73
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
3.02 $267.41 $920.52
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 4#350, 1#1
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 3" EMT 1.00 52.40 94.75
12 #1 THHN Stranded Copper .13 13.20 44.56
46 #350 THHN Stranded Copper 1.47 195.65 668.73
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
3.15 $280.61 $965.09
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 4#350, 1#1/0

Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3" EMT 1.00 52.40 94.75
46 #350 THHN Stranded Copper 1.47 195.65 668.73
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
3.18 $283.57 $973.77

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
