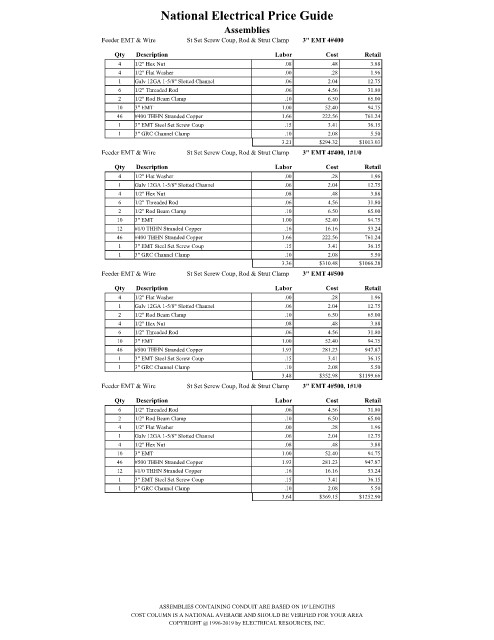

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 4#400
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 3" EMT 1.00 52.40 94.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
3.21 $294.32 $1013.03
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 4#400, 1#1/0
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
3.36 $310.48 $1066.28
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 4#500
Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
3.48 $352.98 $1199.66
Feeder EMT & Wire St Set Screw Coup, Rod & Strut Clamp 3" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" GRC Channel Clamp .10 2.08 5.50
3.64 $369.15 $1252.90

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
