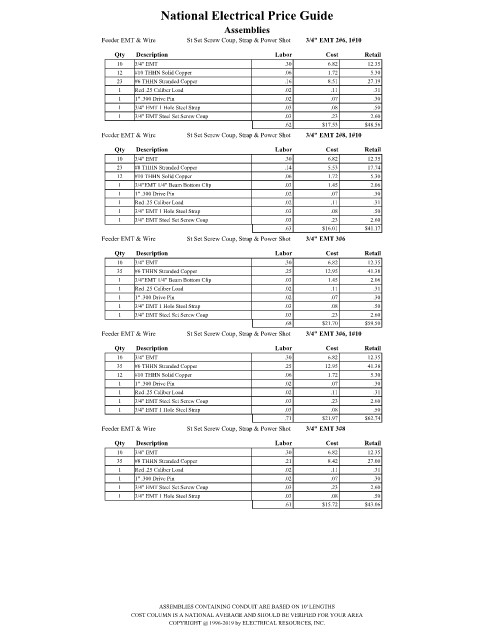

Page 1943 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 2#6, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
23 #6 THHN Stranded Copper .16 8.51 27.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
.62 $17.53 $48.56
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 2#8, 1#10

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
23 #8 THHN Stranded Copper .14 5.53 17.74
12 #10 THHN Solid Copper .06 1.72 5.30
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
.63 $16.01 $41.17
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 3#6

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #6 THHN Stranded Copper .25 12.95 41.38
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
.68 $21.70 $59.50
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 3#6, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #6 THHN Stranded Copper .25 12.95 41.38
12 #10 THHN Solid Copper .06 1.72 5.30
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.71 $21.97 $62.74
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 3#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #8 THHN Stranded Copper .21 8.42 27.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.61 $15.72 $43.06

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
