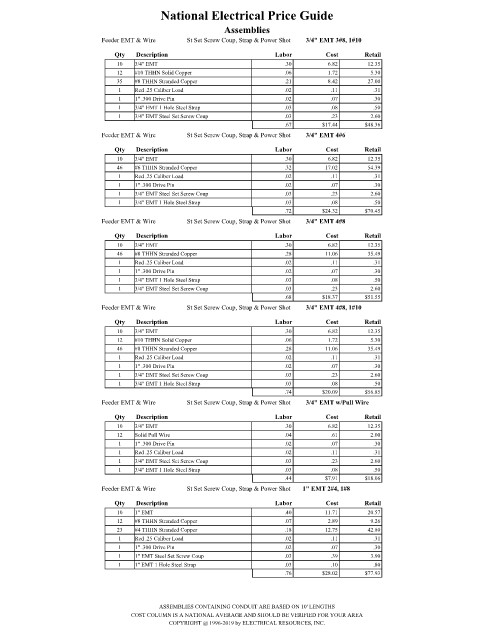

Page 1944 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 3#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
35 #8 THHN Stranded Copper .21 8.42 27.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
.67 $17.44 $48.36
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 4#6

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #6 THHN Stranded Copper .32 17.02 54.39
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.72 $24.32 $70.45
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 4#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
.68 $18.37 $51.55
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT 4#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
46 #8 THHN Stranded Copper .28 11.06 35.49
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.74 $20.09 $56.85
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Steel Set Screw Coup .03 .23 2.60
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.44 $7.91 $18.06
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 2#4, 1#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 #8 THHN Stranded Copper .07 2.89 9.26
23 #4 THHN Stranded Copper .18 12.75 42.80
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT Steel Set Screw Coup .03 .39 3.90
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.76 $28.02 $77.93

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
