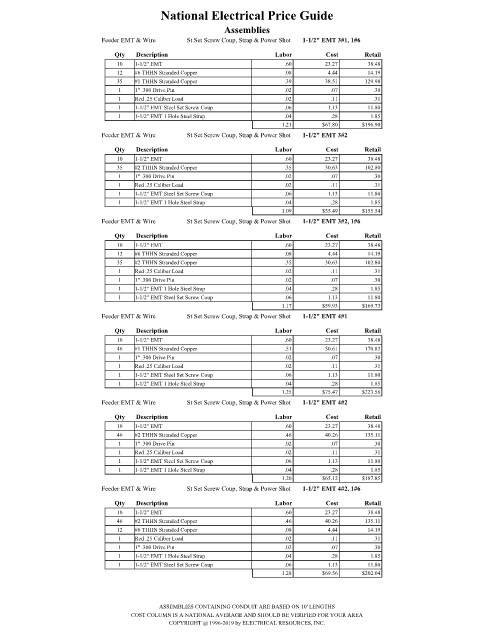

Page 1948 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 3#1, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
35 #1 THHN Stranded Copper .39 38.51 129.98
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.21 $67.80 $196.90
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 3#2

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #2 THHN Stranded Copper .35 30.63 102.80
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.09 $55.49 $155.54
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 3#2, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
35 #2 THHN Stranded Copper .35 30.63 102.80
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1.17 $59.93 $169.73
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 4#1

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #1 THHN Stranded Copper .51 50.61 170.83
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.25 $75.47 $223.56
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 4#2
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.20 $65.12 $187.85
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 4#2, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
46 #2 THHN Stranded Copper .46 40.26 135.11
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1.28 $69.56 $202.04

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
