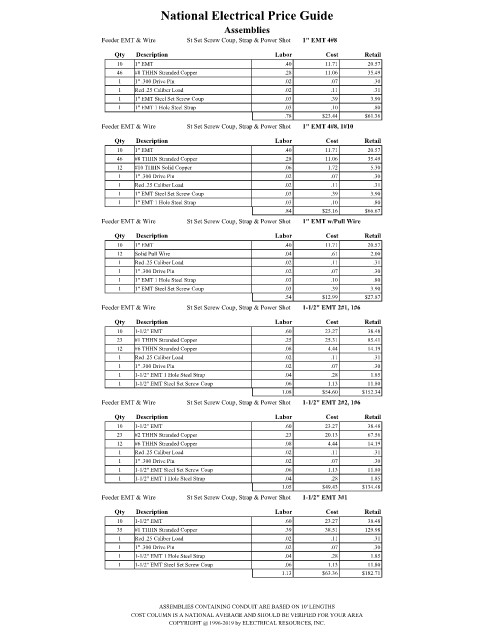

Page 1947 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 4#8
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
46 #8 THHN Stranded Copper .28 11.06 35.49
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT Steel Set Screw Coup .03 .39 3.90
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.78 $23.44 $61.36
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT 4#8, 1#10
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
46 #8 THHN Stranded Copper .28 11.06 35.49
12 #10 THHN Solid Copper .06 1.72 5.30
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1" EMT Steel Set Screw Coup .03 .39 3.90
1 1" EMT 1 Hole Steel Strap .03 .10 .80
.84 $25.16 $66.67
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 1" EMT .40 11.71 20.57
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1" EMT 1 Hole Steel Strap .03 .10 .80
1 1" EMT Steel Set Screw Coup .03 .39 3.90
.54 $12.99 $27.87
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 2#1, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
23 #1 THHN Stranded Copper .25 25.31 85.41
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1.08 $54.60 $152.34
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 2#2, 1#6
Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
23 #2 THHN Stranded Copper .23 20.13 67.56
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1.05 $49.43 $134.48
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 1-1/2" EMT 3#1

Qty Description Labor Cost Retail
10 1-1/2" EMT .60 23.27 38.48
35 #1 THHN Stranded Copper .39 38.51 129.98
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/2" EMT 1 Hole Steel Strap .04 .28 1.85
1 1-1/2" EMT Steel Set Screw Coup .06 1.13 11.80
1.13 $63.36 $182.71

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
