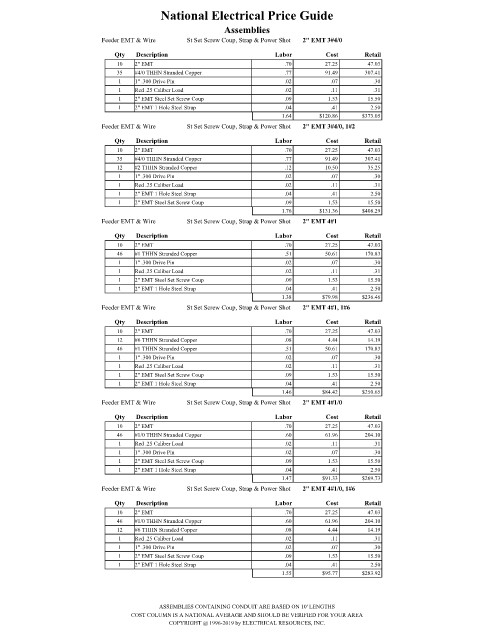

Page 1954 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 2" EMT 3#4/0
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.64 $120.86 $373.05
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 2" EMT 3#4/0, 1#2
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #4/0 THHN Stranded Copper .77 91.49 307.41
12 #2 THHN Stranded Copper .12 10.50 35.25
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1.76 $131.36 $408.29
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 2" EMT 4#1
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #1 THHN Stranded Copper .51 50.61 170.83
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.38 $79.98 $236.46
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 2" EMT 4#1, 1#6
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #1 THHN Stranded Copper .51 50.61 170.83
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.46 $84.42 $250.65
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 2" EMT 4#1/0
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.47 $91.33 $269.73
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 2" EMT 4#1/0, 1#6
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
12 #6 THHN Stranded Copper .08 4.44 14.19
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT Steel Set Screw Coup .09 1.53 15.50
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.55 $95.77 $283.92

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
