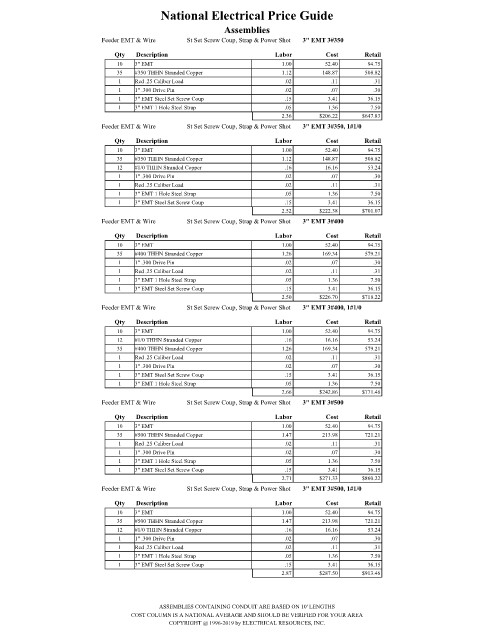

Page 1959 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 3#350
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #350 THHN Stranded Copper 1.12 148.87 508.82
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
2.36 $206.22 $647.83
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 3#350, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #350 THHN Stranded Copper 1.12 148.87 508.82
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.52 $222.38 $701.07
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 3#400
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.50 $226.70 $718.22
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 3#400, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
2.66 $242.86 $771.46
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 3#500
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.71 $271.33 $860.22
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
10 3" EMT 1.00 52.40 94.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 3" EMT 1 Hole Steel Strap .05 1.36 7.50
1 3" EMT Steel Set Screw Coup .15 3.41 36.15
2.87 $287.50 $913.46

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
