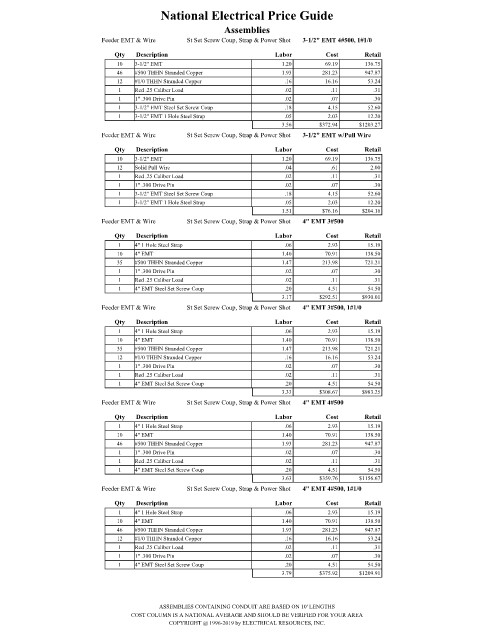

Page 1963 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
3.56 $372.94 $1203.27
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 3-1/2" EMT w/Pull Wire

Qty Description Labor Cost Retail
10 3-1/2" EMT 1.20 69.19 136.75
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 3-1/2" EMT Steel Set Screw Coup .18 4.15 52.60
1 3-1/2" EMT 1 Hole Steel Strap .05 2.03 12.20
1.51 $76.16 $204.16
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 4" EMT 3#500
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Steel Set Screw Coup .20 4.51 54.50
3.17 $292.51 $930.01
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 4" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Steel Set Screw Coup .20 4.51 54.50
3.33 $308.67 $983.25
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 4" EMT 4#500
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 4" EMT Steel Set Screw Coup .20 4.51 54.50
3.63 $359.76 $1156.67
Feeder EMT & Wire St Set Screw Coup, Strap & Power Shot 4" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 4" 1 Hole Steel Strap .06 2.93 15.19
10 4" EMT 1.40 70.91 138.50
46 #500 THHN Stranded Copper 1.93 281.23 947.87
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 4" EMT Steel Set Screw Coup .20 4.51 54.50
3.79 $375.92 $1209.91

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
