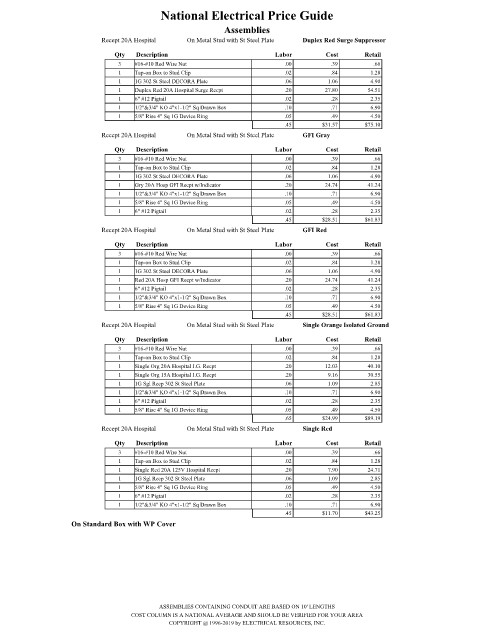

Page 2603 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Hospital On Metal Stud with St Steel Plate Duplex Red Surge Suppressor
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G 302 St Steel DECORA Plate .06 1.06 4.90
1 Duplex Red 20A Hospital Surge Recpt .20 27.80 54.51
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $31.57 $75.10
Recept 20A Hospital On Metal Stud with St Steel Plate GFI Gray

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G 302 St Steel DECORA Plate .06 1.06 4.90
1 Gry 20A Hosp GFI Recpt w/Indicator .20 24.74 41.24
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.45 $28.51 $61.83
Recept 20A Hospital On Metal Stud with St Steel Plate GFI Red
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G 302 St Steel DECORA Plate .06 1.06 4.90
1 Red 20A Hosp GFI Recpt w/Indicator .20 24.74 41.24
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $28.51 $61.83
Recept 20A Hospital On Metal Stud with St Steel Plate Single Orange Isolated Ground
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Single Org 20A Hospital I.G. Recpt .20 12.03 40.10
1 Single Org 15A Hospital I.G. Recpt .20 9.16 30.55
1 1G Sgl Recp 302 St Steel Plate .06 1.09 2.85
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.65 $24.99 $89.19
Recept 20A Hospital On Metal Stud with St Steel Plate Single Red
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Single Red 20A 125V Hospital Recpt .20 7.90 24.71
1 1G Sgl Recp 302 St Steel Plate .06 1.09 2.85
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $11.70 $43.25
On Standard Box with WP Cover

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
