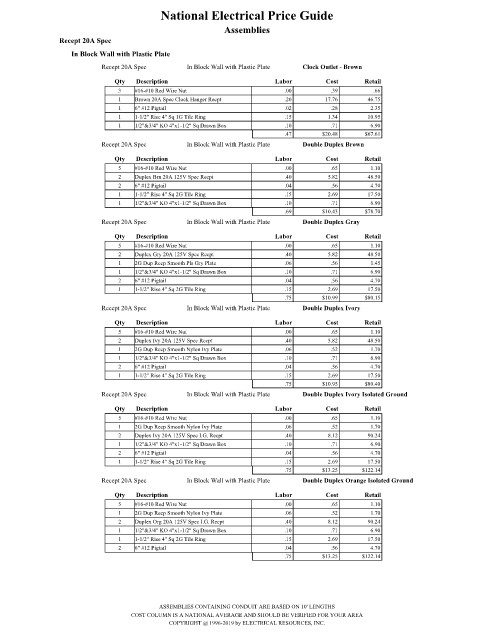

Page 2607 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Spec
In Block Wall with Plastic Plate
Recept 20A Spec In Block Wall with Plastic Plate Clock Outlet - Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Brown 20A Spec Clock Hanger Recpt .20 17.76 46.75
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.47 $20.48 $67.61
Recept 20A Spec In Block Wall with Plastic Plate Double Duplex Brown
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Brn 20A 125V Spec Recpt .40 5.82 48.50
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.69 $10.43 $78.70
Recept 20A Spec In Block Wall with Plastic Plate Double Duplex Gray
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Gry 20A 125V Spec Recpt .40 5.82 48.50
1 2G Dup Recp Smooth Pls Gry Plate .06 .56 1.45
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.75 $10.99 $80.15
Recept 20A Spec In Block Wall with Plastic Plate Double Duplex Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Ivy 20A 125V Spec Recpt .40 5.82 48.50
1 2G Dup Recp Smooth Nylon Ivy Plate .06 .52 1.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.75 $10.95 $80.40
Recept 20A Spec In Block Wall with Plastic Plate Double Duplex Ivory Isolated Ground

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Dup Recp Smooth Nylon Ivy Plate .06 .52 1.70
2 Duplex Ivy 20A 125V Spec I.G. Recpt .40 8.12 90.24
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.75 $13.25 $122.14
Recept 20A Spec In Block Wall with Plastic Plate Double Duplex Orange Isolated Ground
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Dup Recp Smooth Nylon Ivy Plate .06 .52 1.70
2 Duplex Org 20A 125V Spec I.G. Recpt .40 8.12 90.24
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
.75 $13.25 $122.14

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
