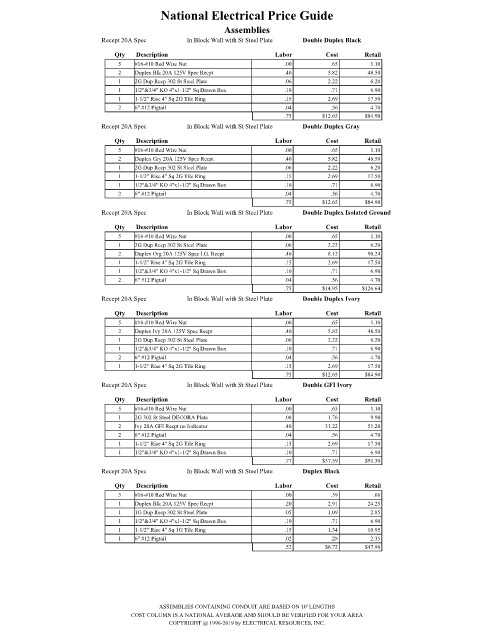

Page 2612 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Spec In Block Wall with St Steel Plate Double Duplex Black
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Blk 20A 125V Spec Recpt .40 5.82 48.50
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
.75 $12.65 $84.90
Recept 20A Spec In Block Wall with St Steel Plate Double Duplex Gray
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Gry 20A 125V Spec Recpt .40 5.82 48.50
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.75 $12.65 $84.90
Recept 20A Spec In Block Wall with St Steel Plate Double Duplex Isolated Ground
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
2 Duplex Org 20A 125V Spec I.G. Recpt .40 8.12 90.24
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.75 $14.95 $126.64
Recept 20A Spec In Block Wall with St Steel Plate Double Duplex Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Ivy 20A 125V Spec Recpt .40 5.82 48.50
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.75 $12.65 $84.90
Recept 20A Spec In Block Wall with St Steel Plate Double GFI Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G 302 St Steel DECORA Plate .08 1.76 9.90
2 Ivy 20A GFI Recpt no Indicator .40 31.22 51.20
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.77 $37.59 $91.30
Recept 20A Spec In Block Wall with St Steel Plate Duplex Black
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Blk 20A 125V Spec Recpt .20 2.91 24.25
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
.52 $6.72 $47.96

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
