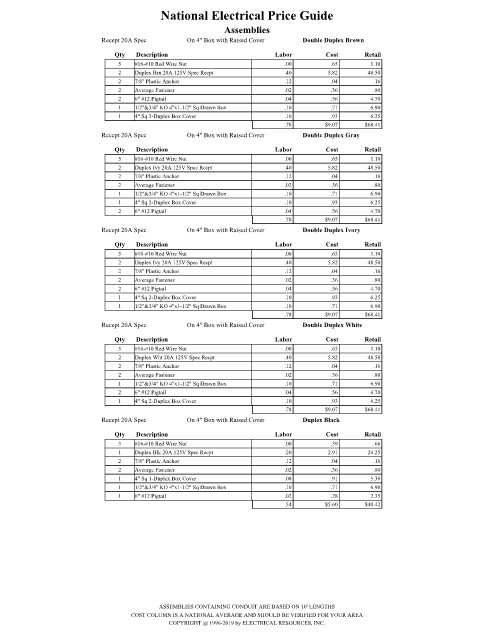

Page 2617 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Spec On 4" Box with Raised Cover Double Duplex Brown
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Brn 20A 125V Spec Recpt .40 5.82 48.50
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 4" Sq 2-Duplex Box Cover .10 .93 6.25
.78 $9.07 $68.41
Recept 20A Spec On 4" Box with Raised Cover Double Duplex Gray

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Ivy 20A 125V Spec Recpt .40 5.82 48.50
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 4" Sq 2-Duplex Box Cover .10 .93 6.25
2 6" #12 Pigtail .04 .56 4.70
.78 $9.07 $68.41
Recept 20A Spec On 4" Box with Raised Cover Double Duplex Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Ivy 20A 125V Spec Recpt .40 5.82 48.50
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
2 6" #12 Pigtail .04 .56 4.70
1 4" Sq 2-Duplex Box Cover .10 .93 6.25
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.78 $9.07 $68.41
Recept 20A Spec On 4" Box with Raised Cover Double Duplex White
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Wht 20A 125V Spec Recpt .40 5.82 48.50
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 4" Sq 2-Duplex Box Cover .10 .93 6.25
.78 $9.07 $68.41
Recept 20A Spec On 4" Box with Raised Cover Duplex Black

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Blk 20A 125V Spec Recpt .20 2.91 24.25
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq 1-Duplex Box Cover .08 .91 5.30
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.54 $5.60 $40.42

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
